5 Wavelength Professional-Grade 132LED Light Therapy Panel Device for Face & Body , Fade Acne, Boost Collagen & Glow

How to used

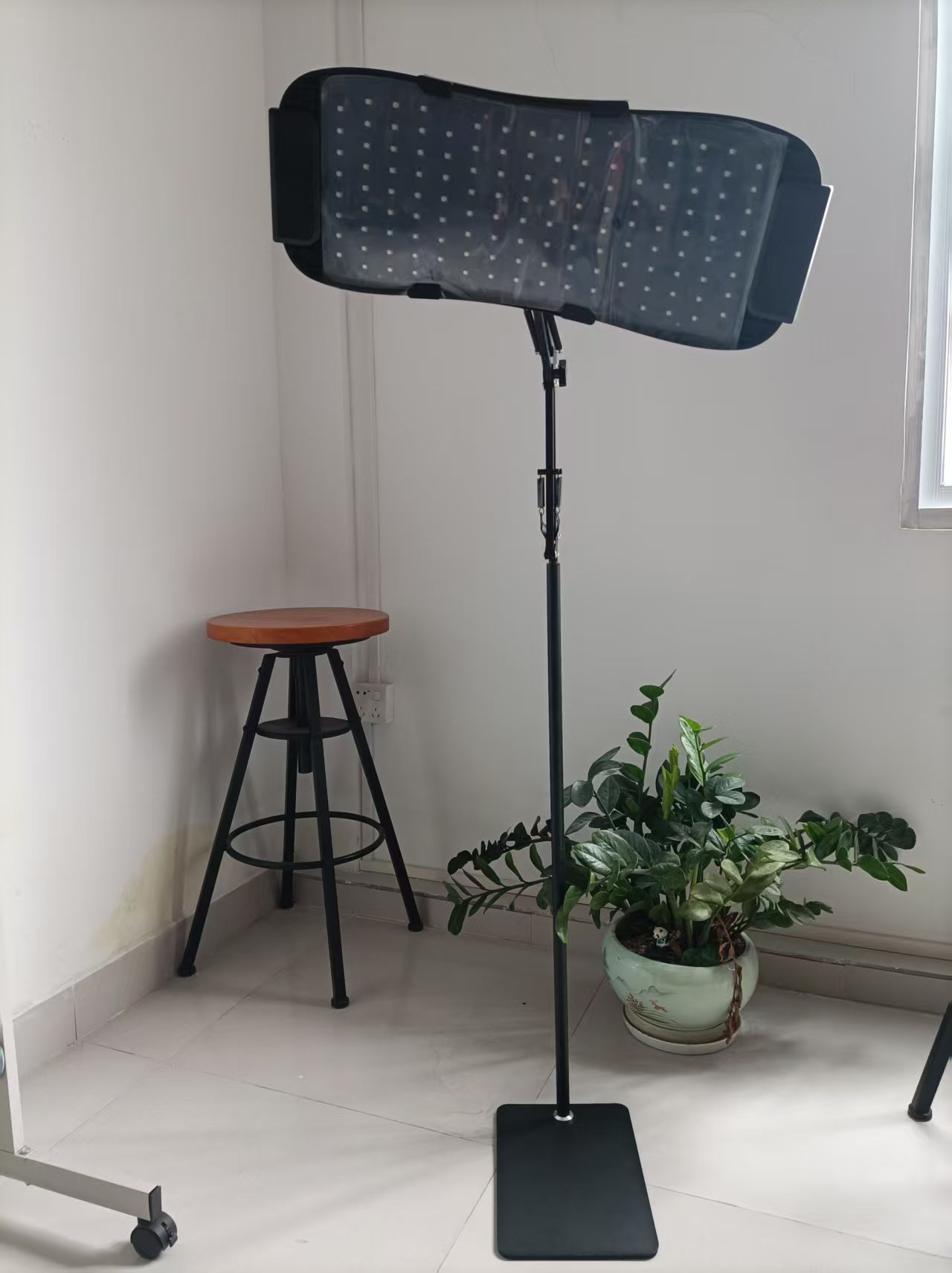

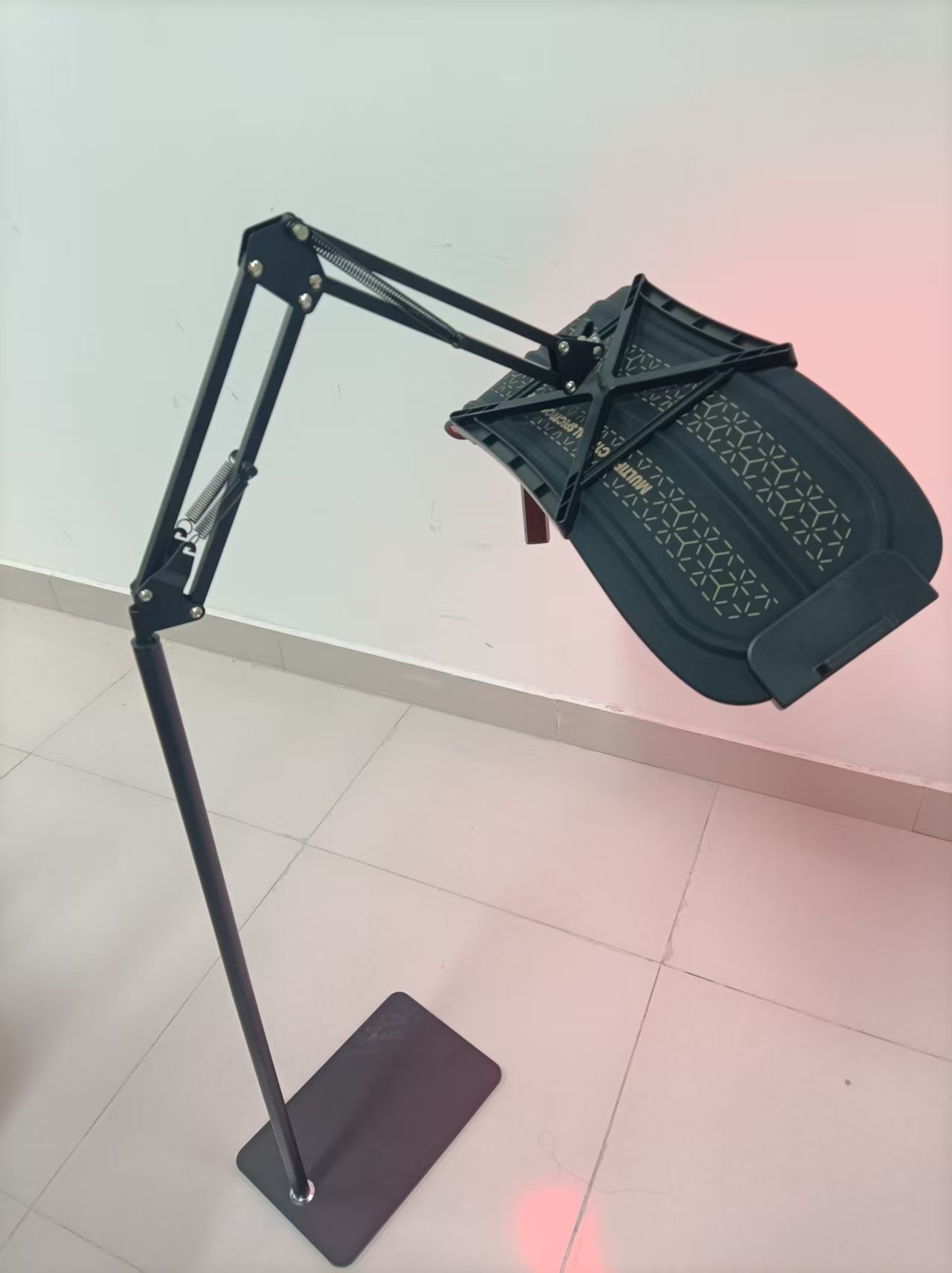

1. Install the large LED panel light (three installation methods are available: desktop stand, strap, and floor stand; refer to the instruction manual for specific installation instructions).

2. Remove the transparent film from the large LED panel light.

3. Connect the large LED panel light and the controller using a Type-C cable (plug the controller into the left-side connector).

4. Power On/Off: Press and hold the power button for 2 seconds to power on/off (default power-on is red light, and the R indicator light on the display will illuminate).

5. Infrared Light Switch: Briefly press the NIR button to turn the infrared light on/off. The infrared light can be controlled independently and can be used in conjunction with other light sources (the infrared light is invisible; the NIR indicator light on the display indicates that the infrared light is on).

6. Energy Adjustment: Briefly press the E button to adjust the energy intensity; there are three intensity levels.

7. Mode Adjustment: Briefly press the M button. Adjust the light wave mode: There are four modes in total (R indicates red light mode, B indicates blue light mode, Y indicates yellow light mode, and R+B indicates purple light mode).

8. Timer adjustment: Short press T+ to increase the time, short press T- to decrease the time, with a total of 5 timer settings (10/15/20/25/30min).

9. Select the energy, mode, and timer according to your needs. When irradiating the face, wear protective goggles and do not shine the light source directly into your eyes.

10. Cleanse your face before use and ensure there is no makeup. Cosmetics may contain photosensitive ingredients that may affect skincare results.

11. After use, disconnect the controller from the main light panel and apply your usual moisturizing skincare routine.

TIPS: Please perform a photosensitivity test before first use. Place the device on your arm, turn on the switch, and let it light up for 10 minutes. If symptoms such as skin redness or itching occur, you may have photosensitive substances. We suggest you stop using them or consult a beautician before using them again.

Charging Instructions:

1. Before first use, please fully charge the controller. A full charge takes approximately 4 hours.

2. When the battery is low, insert the USB cable into the port on the right side of the controller using the USB-C port, then insert the USB adapter (not included; you will need to provide your own), and finally plug it into a wall socket.

3. The power indicator light will flash while charging and will remain on when fully charged.

4. Do not connect and power on the device while charging, as this may damage the battery or device and prevent the device from powering on.

Note

1.Please do not fold the device meter for storage, otherwise it will damage the wires inside.

2.This therapy device is not waterproof !

3.Not intended for the use by children and pregnant woman.

4.Do not use more than 30 minutes for a treatment session.

Specifications:

Product material:ABS

Voltage:DC 5V

Power rating:4.2W

Charging way:TYPE-C

Charging time:4-5H

Battery time:about 1 h

Battery capacity: 3000mAh

Lamp bead quantity:528 LED chips(132LED)

Gears: 3 gears

Timer: Total 5 gears (10/15/20/25/30min)

Power density:

Red light + infrared: 45mW/cm²

Blue light + infrared: 45mW/cm²

Yellow light + infrared: 27mW/cm²

Violet light + infrared: 52mW/cm²

Professional integrating sphere testing; a 10% error in the data is normal.

Product size:31*20*0.3cm

Product weight:1800g

Package size:57.5*24*10cm

Package weight:3875g

Packing List:

Spectrometer*1

Nylon buckle*1

Goggles*1

Controller *1

Card holder*2

USB cable*1

User Manual*1

Support Bracket* 2

Expansion bracket accessories
