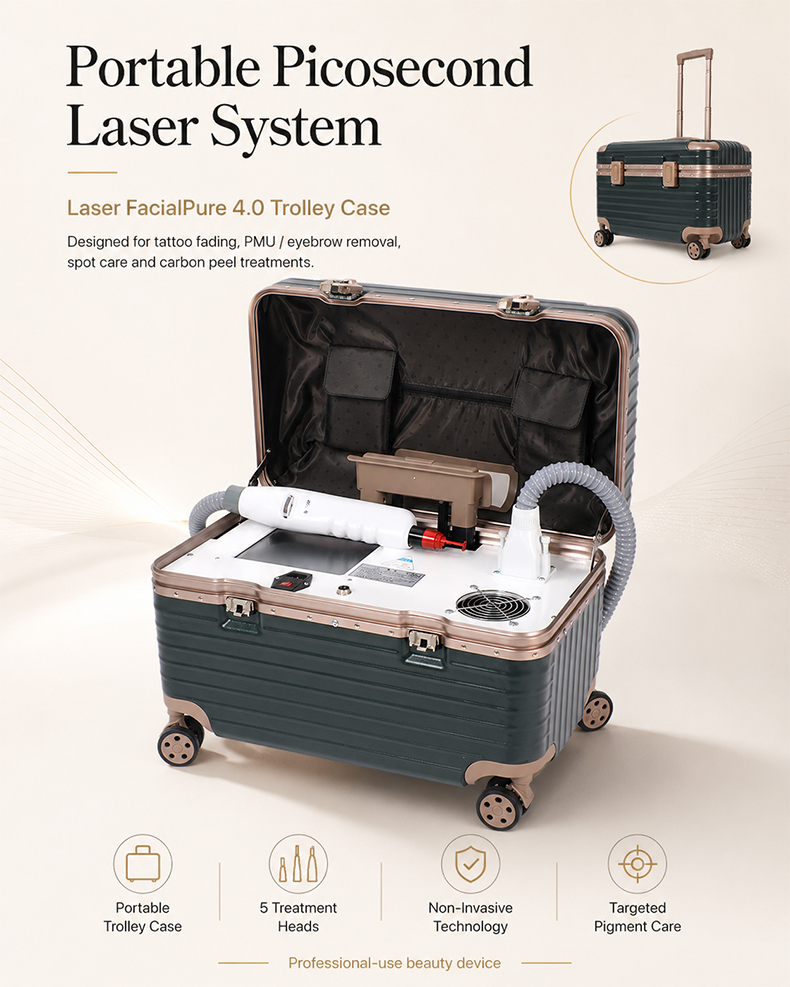

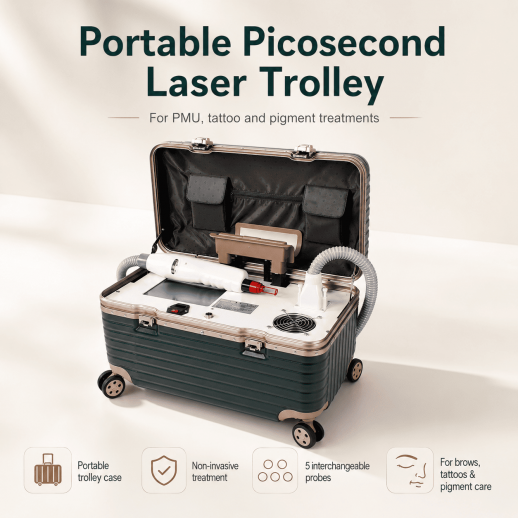

LASER FacialPure 4.0, Portable Small Trolley Case Non-invasive Laser Picosecond Machine, Tattoo Remover and Eyebrow Removal

The instrument must be filled with water before turning it on.

1. Open the overflow hole.
2. Insert the funnel into the water filling hole and add distilled or purified water.
3. When water flows out from the overflow hole, the instrument is full. Stop adding water and close the overflow hole.
4. Turn on the instrument and begin use.

Tip: If used daily, add water every half month. If not used daily, add water once a month. Replace all water inside the instrument every two months.

1. Clean the treatment area and apply a thick layer of gel.
2. Start from the end of the eyebrow. After treatment, wipe off the gel, apply erythromycin ointment, cover with plastic wrap and ice for 15 minutes.
3. If the skin is not broken, avoid water for about 24 hours. If the skin is broken, avoid water until scabbing and recovery.
4. Operate close to the skin. If the skin does not turn white, raise the probe slightly, but no more than 1cm.
5. Eyebrow removal should only be applied once per area.
6. Do not set the frequency too high, as this may cause white eyebrows.
7. Eyeliner operation is not recommended for beginners.
8. Check for inflammation before use. People prone to scarring or allergies should use with caution.
9. Keep the treatment area clean and avoid friction, makeup, alcohol, facial masks and strenuous exercise during recovery.

1. People who have had eyebrow removal many times.
2. People prone to scarring.
3. People with deep eyebrow tattoos.
4. People with obsessive-compulsive personality tendencies.

1. Recommended operating distance: 1-3cm from the skin.
2. Tattoo removal is not recommended for tattoos less than one year old.
3. Clean the skin with 75% medical alcohol before treatment.
4. Avoid anaesthetic cream if possible. After treatment, apply erythromycin ointment and ice for 15 minutes.
5. Apply only once on the same tattoo area.
6. The tattoo area may scab after about 2 days. Avoid water before scabbing forms.
7. Let the scab fall off naturally. Do not pick it by hand.
8. Avoid sun exposure, sweating, spicy food and dark-coloured foods after treatment.
9. The recommended interval between sessions is over 30 days.

1. Recommended operating distance: 1-2cm.
2. Redness, swelling or mild heat after treatment is normal.
3. Apply anti-inflammatory cream daily during recovery.
4. Keep the area clean and avoid sun exposure.
5. If pigment remains, the next treatment can be performed after about one month.
6. Use continuous sun protection and avoid greasy or spicy foods.
7. For the first 1-4 days, focus on skin repair and avoid water where possible.
8. Avoid sauna, strenuous exercise, smoking and alcohol within 7 days.
9. Do not pick scabs by hand.
10. Use SPF30+ sunscreen and maintain sun protection for at least 3-6 months.

Black Face Doll treatment mainly helps brighten skin, reduce dullness, control oil and refine pores. A course usually includes 3-5 sessions, once per month.

1. After cleansing, apply a thin layer of gel and wait for it to dry before operation.
2. Use the special Black Face Doll operation head. Suggested energy: 200-500mj. Suggested frequency: 2-5Hz.
3. Keep 1-2cm away from the skin. Beginners are recommended to start at 2Hz.
4. Each area should only be treated once.
5. After treatment, wash the face after 5 minutes and apply a moisturising mask.

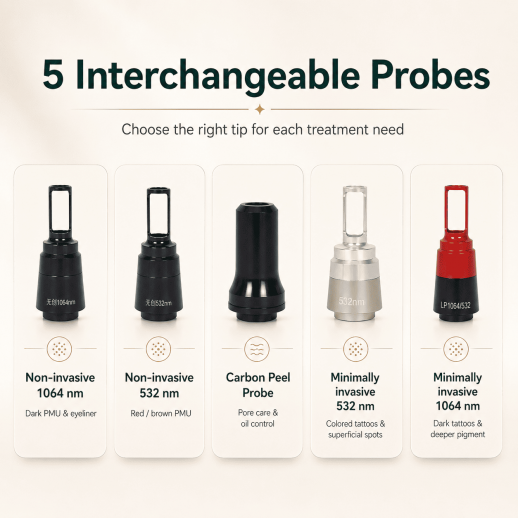

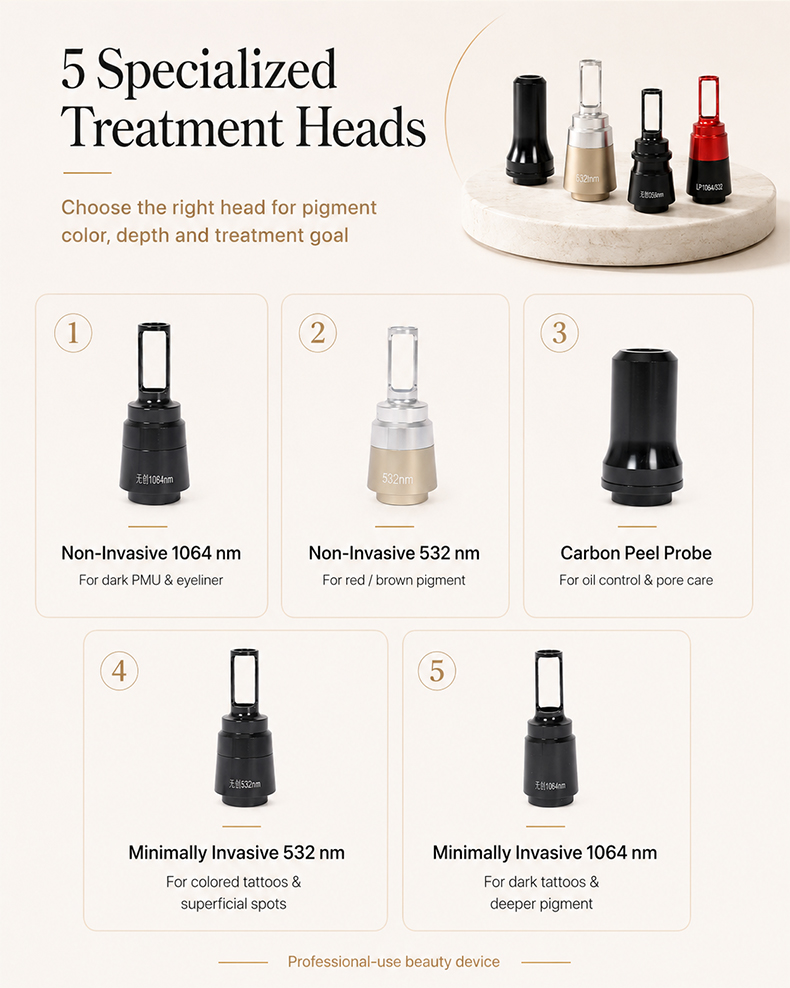

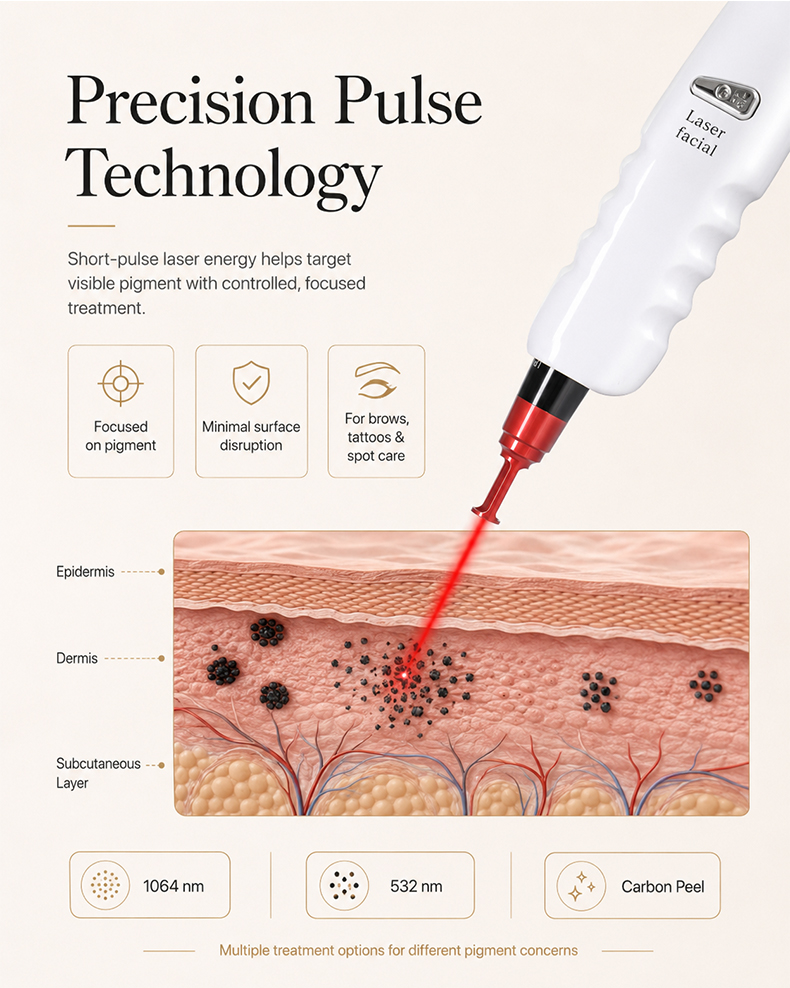

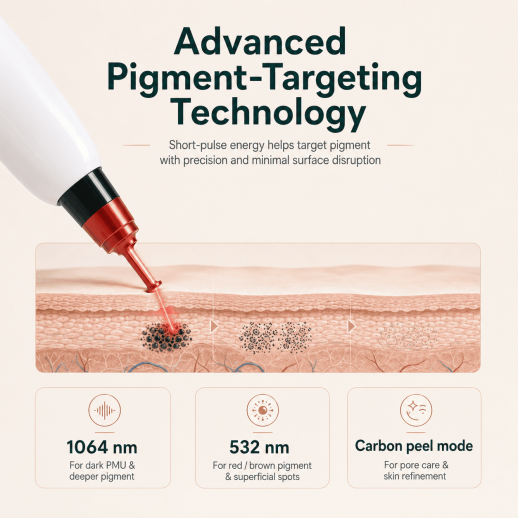

Non-invasive 1064nm Red Probe

For black and blue eyebrows or eyeliner. Energy: 200-300mj. Frequency: 1-3Hz.

Non-invasive 532nm Blue Probe

For red, brown and coffee-coloured eyebrows. Energy: 200-300mj. Frequency: 1-3Hz.

Minimally Invasive 1064nm Probe

For black and blue tattoos or deeper spots. Tattoo removal energy: 300-600mj. Freckle removal energy: 600-1000mj. Frequency: 1-3Hz.

Minimally Invasive 532nm Probe

For coloured tattoos and shallow spots. Tattoo removal energy: 300-600mj. Spot removal energy: 600-1000mj. Frequency: 1-3Hz.

Black Face Doll Probe

For brightening, reducing dullness, oil control and pore care. Energy: 200-500mj. Frequency: 2-5Hz.

1. Keep the pedal pressed during operation.
2. Practice on A4 paper before first use.
3. Do not switch the machine on and off randomly during operation.
4. Women should not use the device during menstruation.
5. Self-operation is not recommended.
6. Eye protection must be worn during use.
7. Before first use, the water tank must be filled with water.

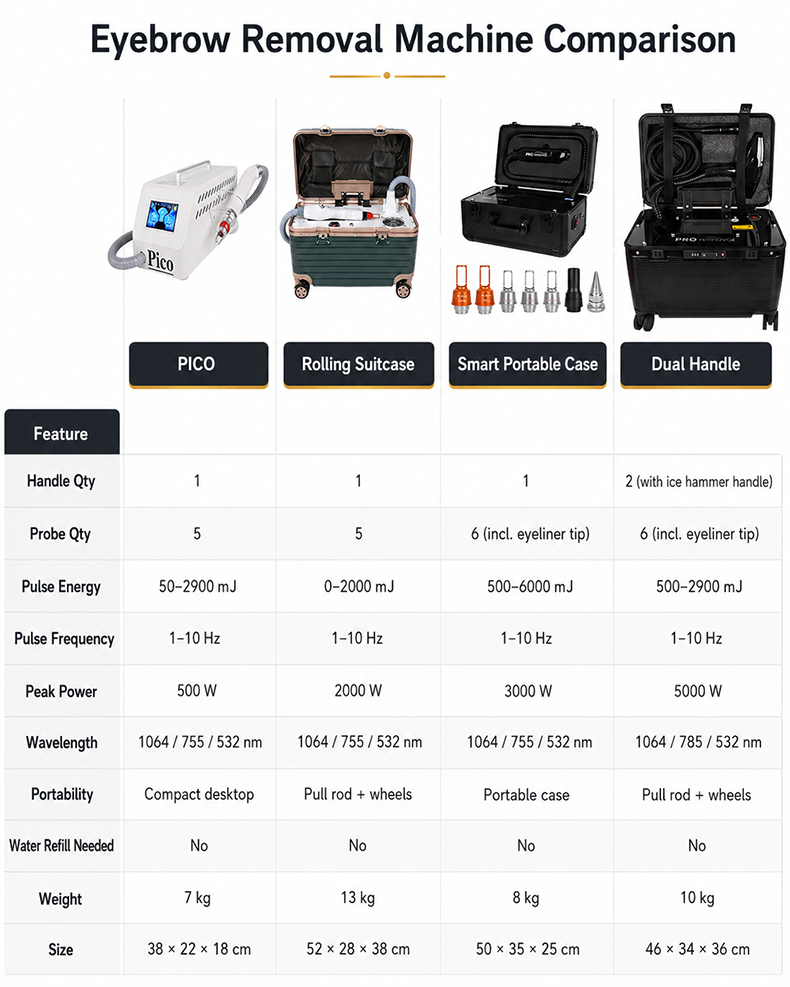

Pulse Energy: 0-2000MJ

Pulse Width: 3-20NS

Frequency Speed: 1-10Hz

Voltage: 110V-240V

Power: 2000W

Wavelength: 1064nm / 755nm / 532nm

Weight: 13kg

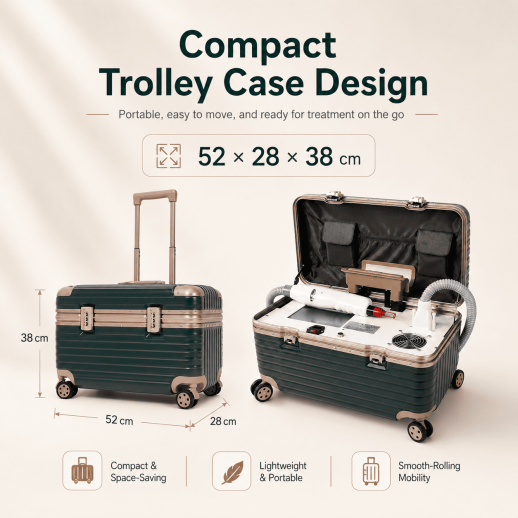

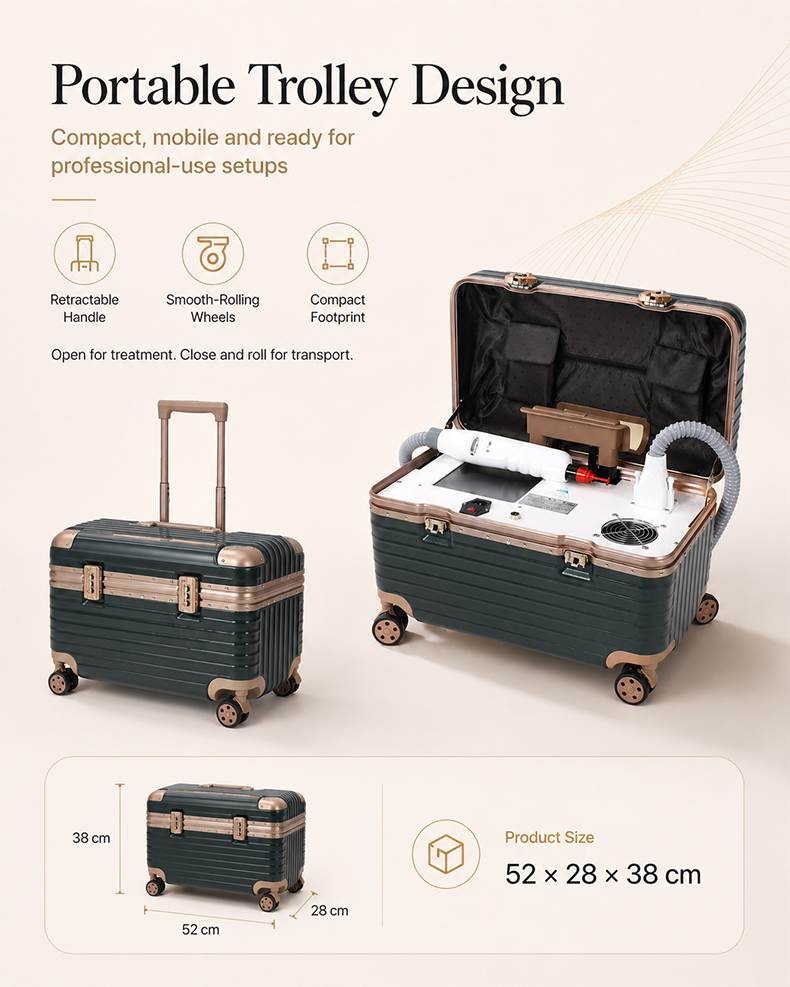

Size: 52 × 28 × 38cm

• Picosecond Machine × 1
• Handle × 1
• Funnel × 1
• Pedal × 1
• Goggles × 1
• Eye Protection × 1
• Operation Head × 5
• Manual × 1
